How Functions Begin on a Modern System

Every text on x86 assembly teaches the same function prologue:

push %rbp
mov  %rsp, %rbp

Save the old frame pointer, point it at the current stack top, and now you have a stable base to address locals and walk the stack. It is in every textbook, every course, every disassembly screenshot from 2010.

I recently disassembled every executable on my Linux machine, all 2,749 of them, and counted how each function begins. The prologue above barely shows up. What functions actually start with today is something else, and one pattern alone accounts for a quarter of them.

Counting First Instructions

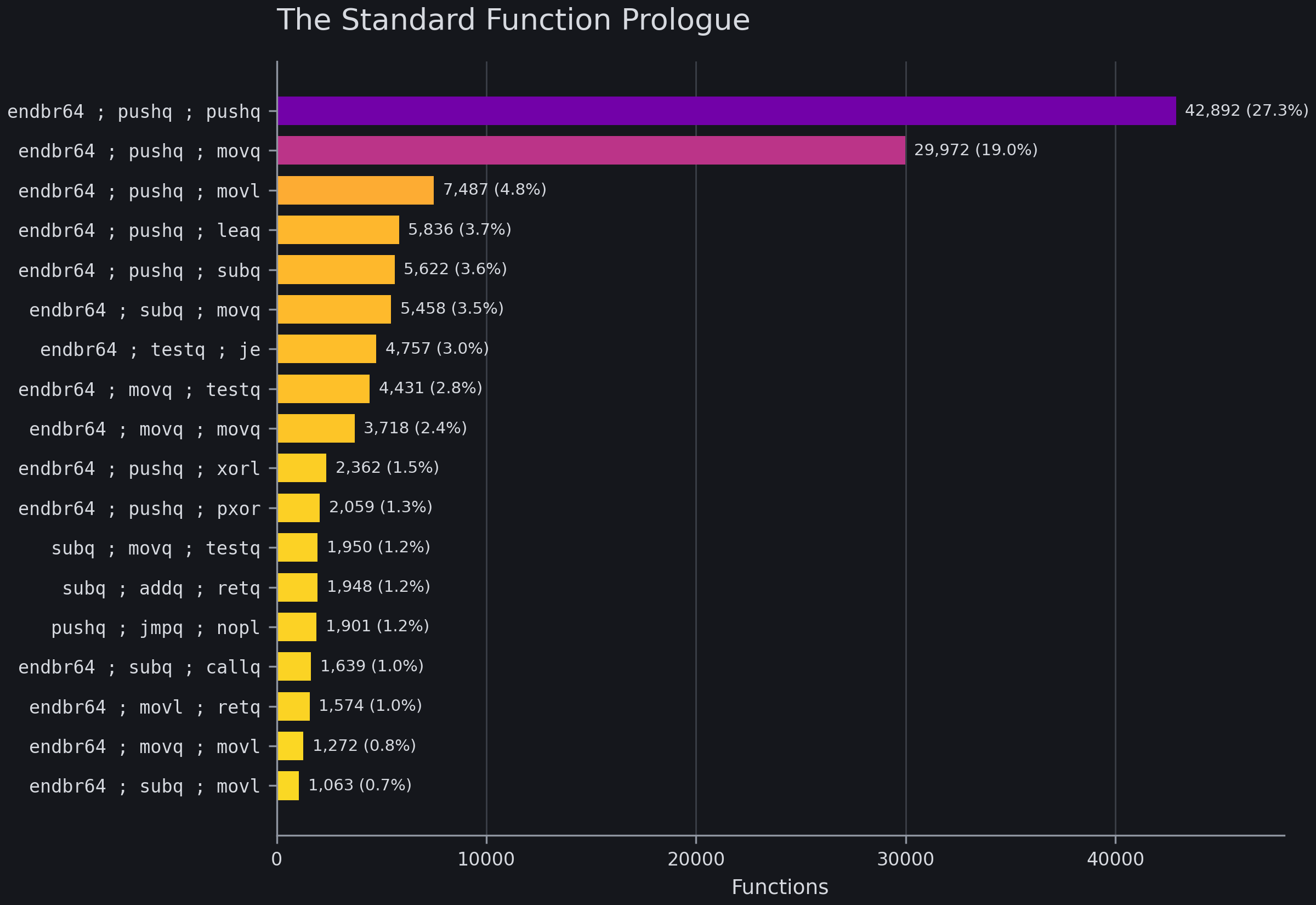

The method is blunt. For every function I could resolve a symbol for, I took the first three instruction mnemonics and treated that triple as a signature. Then I summed the signatures across the whole system. That gives 157,397 functions with a recognizable prologue and 998 distinct three-instruction openings.

The distribution is not flat. It is dominated by a very small number of patterns.

The winner, at 27% of all functions, is this:

endbr64
push %r12
push %rbp

The runner-up, another 19%, is endbr64 ; push ; mov. Together, two openings account for nearly half of every function on the system. And 95% of all functions, whatever comes next, begin with the same single instruction: endbr64.

That is the headline. Not the frame-pointer setup from the textbook. A CET barrier followed by register pushes.

What endbr64 Is Doing There

endbr64 is not arithmetic, not data movement, not a jump. On a CPU without Intel CET it does nothing at all, a four-byte no-op. On a CPU with CET’s Indirect Branch Tracking enabled, it is a landing pad: an indirect call or jump is only allowed to arrive at an address that holds an endbr64. Land anywhere else and the processor faults.

This is a mitigation against a whole class of exploits. Return-oriented and jump-oriented programming works by chaining together snippets that end in indirect branches, jumping into the middle of existing code. If every legal indirect target must be marked with endbr64, the attacker can no longer aim at arbitrary bytes.

Compilers emit it under -fcf-protection, and the major distributions turn that on by default now. So the compiler drops an endbr64 at the start of any function that might be reached through a pointer, which in practice is almost all of them. That is why 95% of the functions on my system open with an instruction that did not exist as a default a few years ago.

Where the Frame Pointer Went

So where is push %rbp ; mov %rsp,%rbp? It is mostly gone, and for a separate reason.

At -O2, compilers omit the frame pointer. rbp is no longer reserved as a stack base; it becomes just another general-purpose register the function can use for whatever it likes. That frees up a register, which is worth having, at the cost of making stack unwinding rely on DWARF metadata instead of a simple rbp chain. (That trade-off is exactly the ongoing argument about -fno-omit-frame-pointer and whether profilers should get their easy unwinding back. In my corpus, frame pointers are kept in about 5% of binaries; the rest omit them.)

Once rbp is a normal register, it shows up in the prologue for a mundane reason: the System V ABI makes rbp, rbx and r12-r15 callee-saved. A function that wants to use them has to preserve the caller’s values first, so it pushes them. That is the push %r12 ; push %rbp you see: not a stack frame, just a function saving the registers it is about to clobber.

Put together, the modern prologue is two jobs the textbook never mentioned: mark this function as a legal indirect-branch target, then save the callee-saved registers it plans to use.

Seeing It in the Wild

Pick any function out of python3 and it is right there:

0000000000422a4e <Py_SetProgramName>:
  422a4e: endbr64
  422a52: push   %r12
  422a54: push   %rbp

endbr64, then two pushes. This is the 27% pattern, in a real binary, doing exactly what the aggregate says: announce a landing pad, save two registers, get to work.

The Caveats

The count is honest about its limits. On stripped binaries I only see the functions that survive in the dynamic symbol table, the exported ones, so the static helpers are invisible and do not vote. And a three-instruction signature is coarse: endbr64 ; push ; push lumps together every function that saves two registers, regardless of which. Neither changes the shape of the result. The endbr64 at the front is unmissable, and the frame-pointer prologue really has faded to a rounding error.

None of this is new to a compiler engineer. But it is a concrete answer to a question most of us never actually check: what does a function look like when it starts, on the machine in front of you, right now? Not what the textbook says. A security checkpoint and a register save.

This is the first of a few posts pulling findings out of that whole-system disassembly. The tool that produced the numbers, machine-code-analyzer, is a separate write-up.
